轴流风机SUMMARY

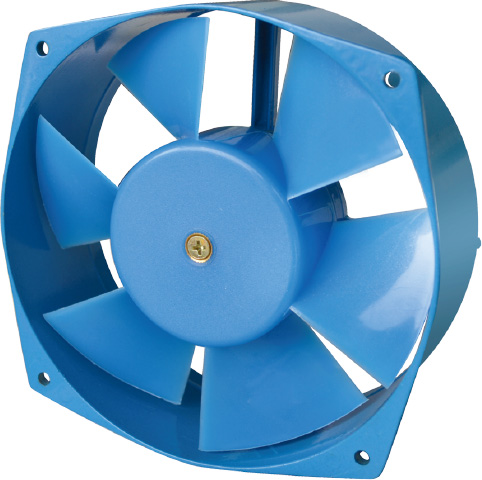

The Axial-flow Fan consists of aluminum alloy shell, plastic blade and electrical machine. It has such advantages of small size, installation conveniencet, large wind, small vibration and low noise.
Environment temperature: -40℃--+55℃
Height about sea level : 55Kpa（2500m）
Relative humidity: 90%--95%
THE SCOPE OF APPLICATION
The fan is mainly used in ground automatic control device which needs big air flow, and ventilation and heat dispersion of large-scale electric equipment, cabinet and electric welder. It can also be applied for ventilation, breathing and purify in building and workshop.

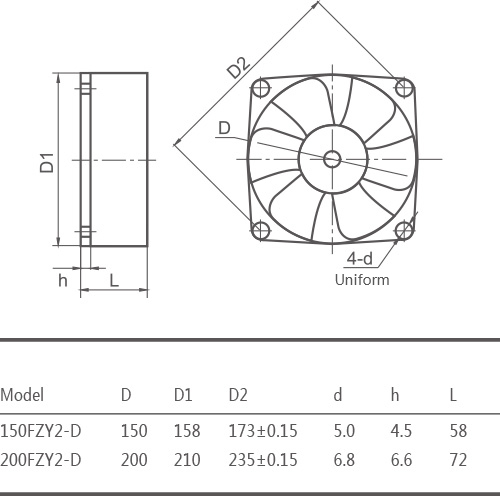

OVERALL AND INSTALLATION DIMENSIONS

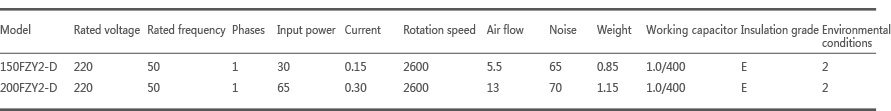

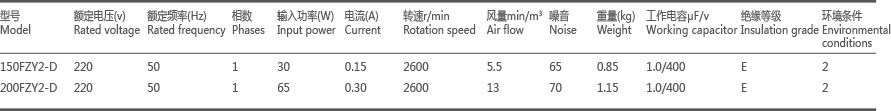

AXIAL FLOW FAN DATA
