气动隔膜泵SUMMARY
Pneumatic diaphragm pump is a new type of pump, using compressed air as power source, for all kinds of corrosive liquid, with particles of liquid, high viscosity, volatile, flammable, poisonous liquid, can pump completely. The main features of this kind of pump is without irrigation water, the liquid flow can pump, and can transport some easy flow of media, the fire and explosion.
PRINCIPLE
Pneumatic diaphragm pump is a new type of transportation machinery, using compressed air as a power source for a variety of corrosive liquid, liquid with particles, high viscosity, volatile, flammable, poisonous liquid. The main feature of this pump is that without irrigation water, can pumping liquid flow and some medium which is easy flow, avoiding fire and explosion.
THE SCOPE OF APPLICATION
The pump use air out of compressor as the driving force, adjust the air to drive the diaphragm, aim to reach an transport of fluid.
CHARACTERISTIC
1. Low gas consumption, medium flow regulation is stepless regulation.
2. Diaphragm is made of corrosion resistant material, can transport a variety of corrosive medium.
3, Low failure rate, easy to install and convenient maintenance.
4, The pump shell is made of high quality material, internal parts are made of stainless steel and copper, of all those make the pump light, beautiful, stainless and anticorrosive.
INSTALLATION

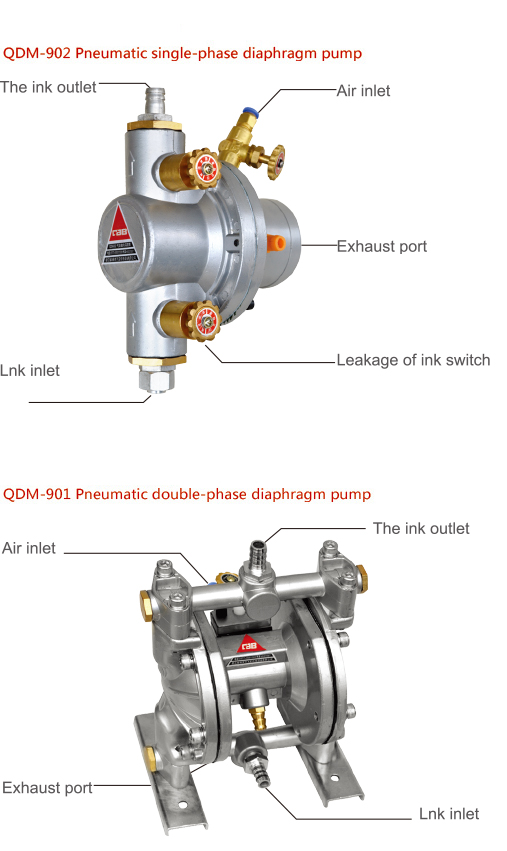

1. The pump must be mounted vertically, pay attention to the direction of the arrow.
2. Connect hose to the ink port.
